Cleaveland Flash & Fire Point Apparatus

Product Description

(Compliance with International Standards IP 36 and ASTM D-92)

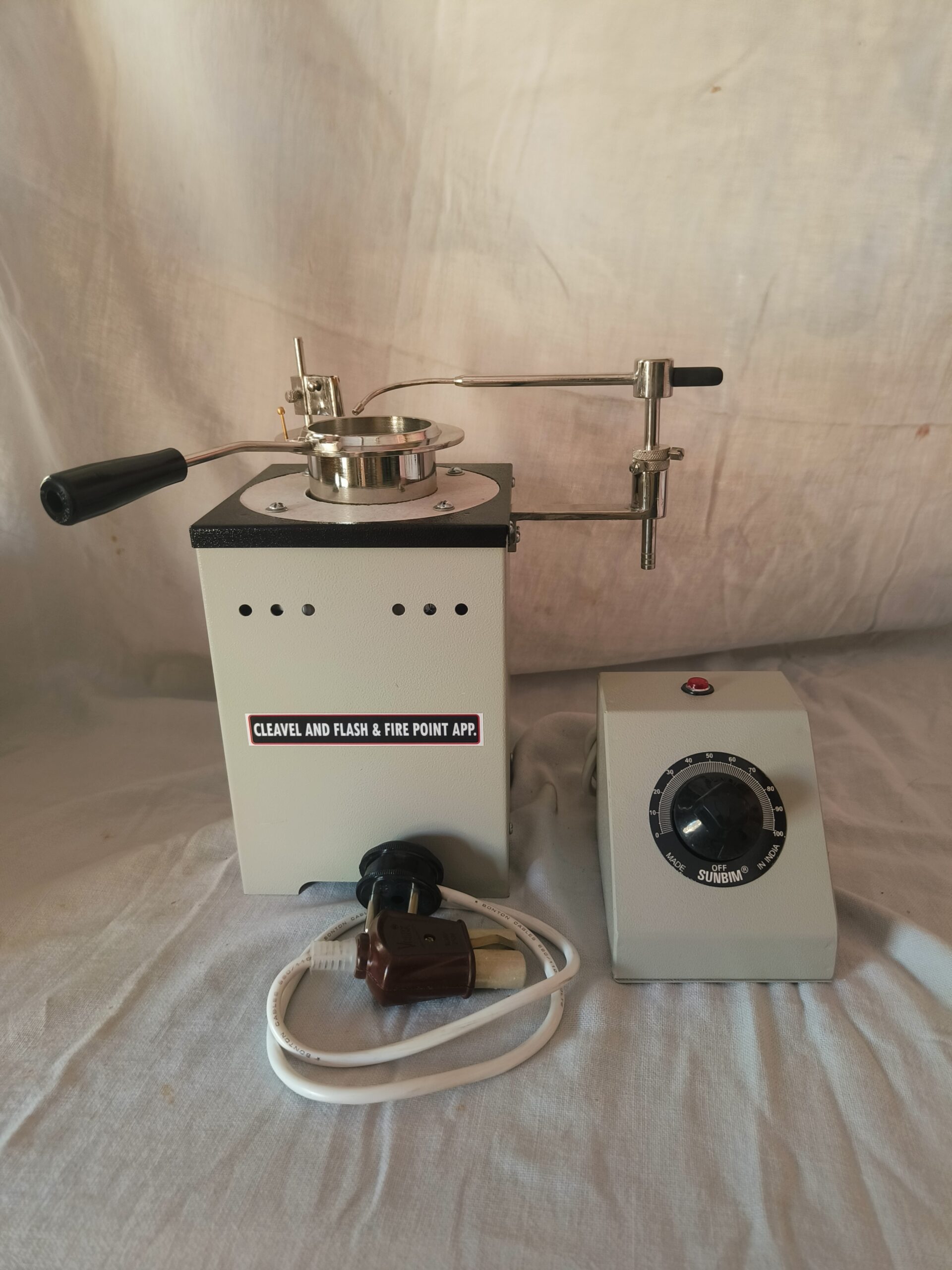

This apparatus is used for determination of flash point and fire point of petroleum products, open cup flash above 80°C, as per specification IP 36 and IS: 1448 (P:69) 1969. The apparatus consists of a brass cup, heating plate to specific dimensions, thermometer clip, and test flame attachment with swivel joint for passing over test liquid surface in the prescribed manner. Heating is controlled by means of an energy regulator fitted to the apparatus. Suitable for operation on 220 Volts, 50 cycles AC circuits.

Electrical heating with energy regulator, Gas Test Jet

Optional Accessories

Thermometer IP 28C (-5°C to 400°C)

Polish wooden case for RAP-132, 133, 134 models

Rexine cover for dust protection to RAP-135 & 136 models

Spare cup with handle

Spare nichrome element

L.P.G. test flame container with valve

With Oil Wick Arrangement

With Gas Jet & Oil Wick Arrangement, Combined Model

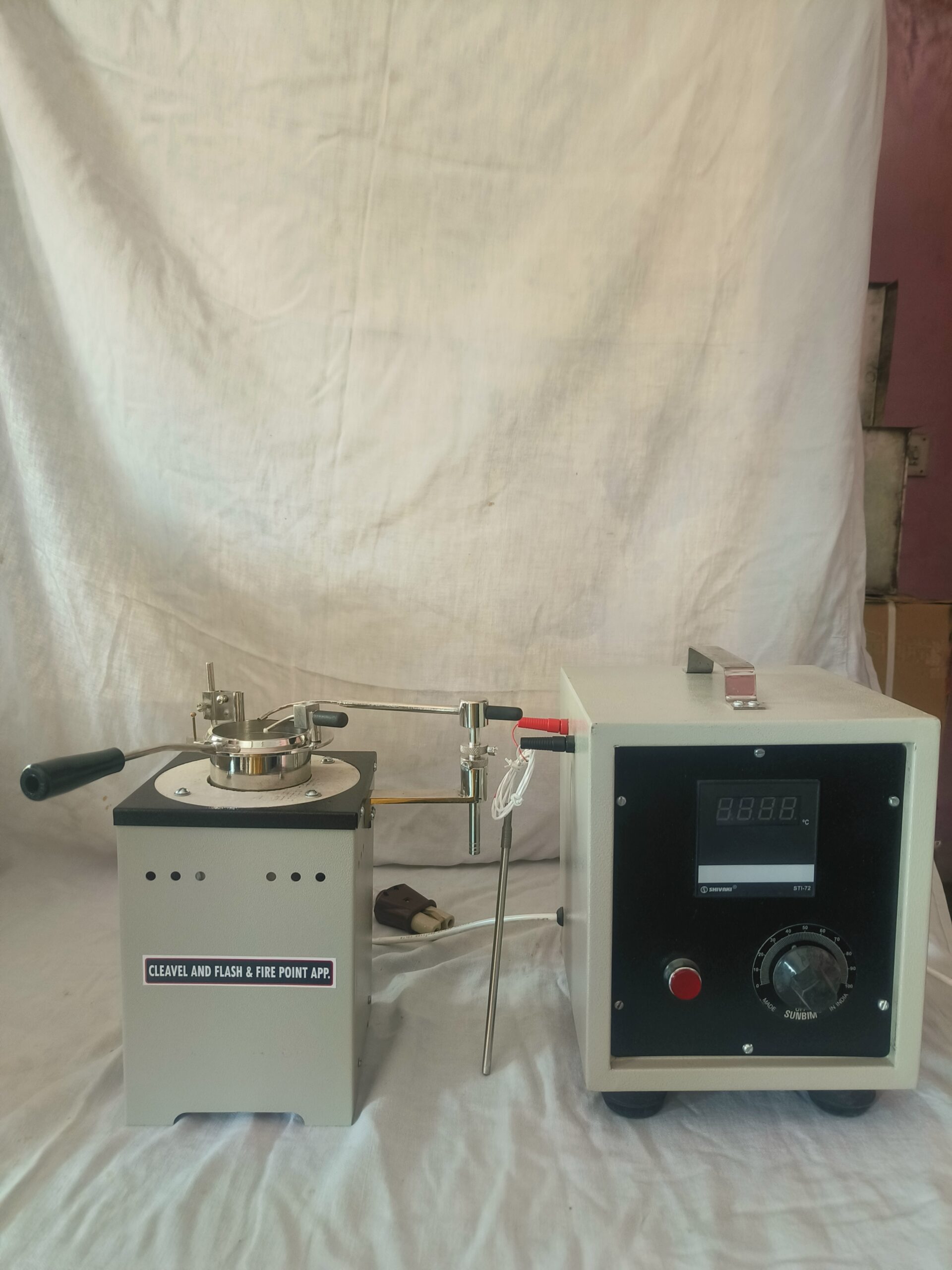

With Electronic Digital Temperature Indicator and Regulator, Combined Model

Automatic Flash & Fire Point Apparatus. Membrane keypad for selection of desired flash point programme. Rapid heating stage. Multi-functional arm for ignition device. Complete set.
