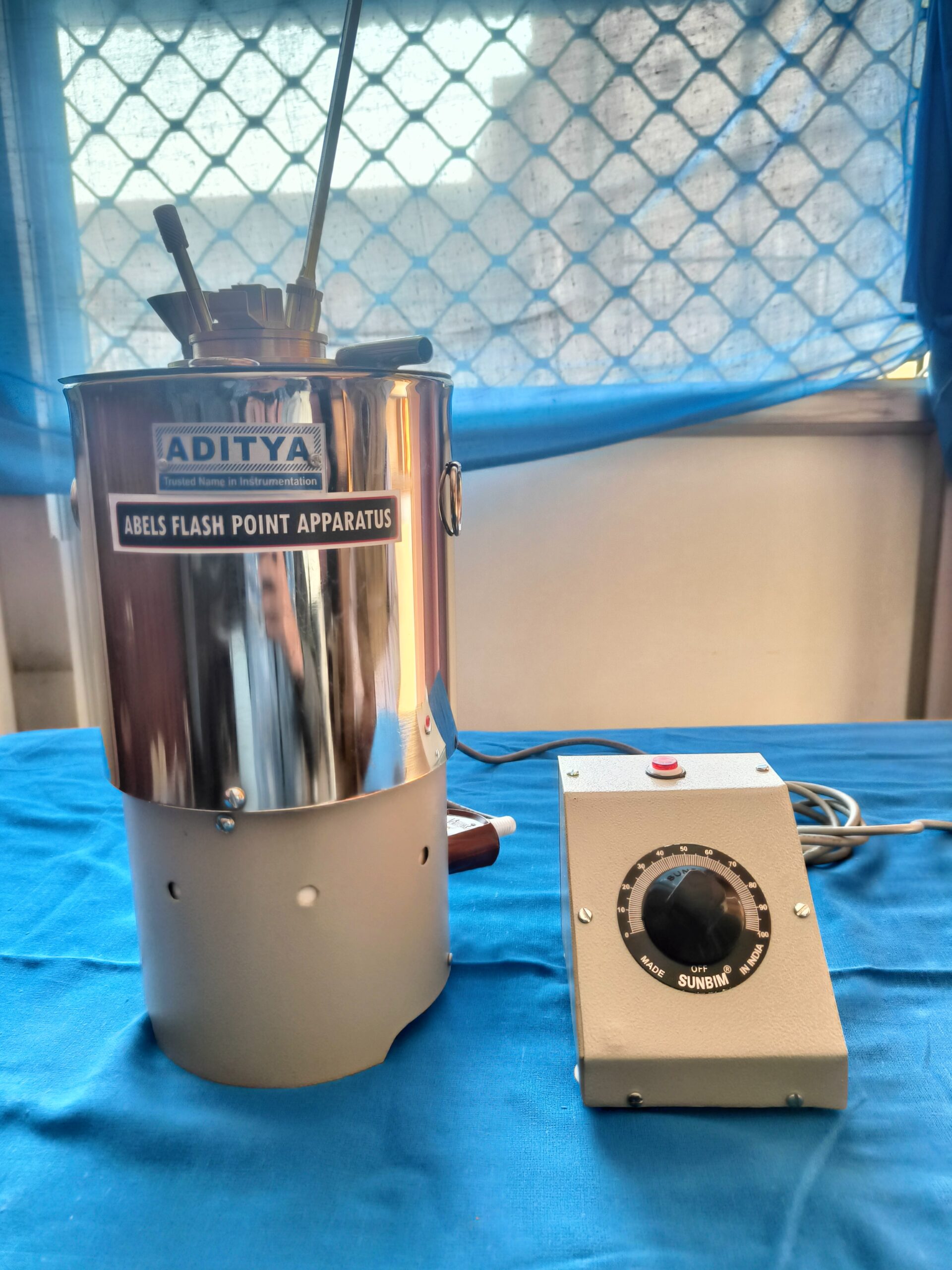

Abel’s Flash Point Apparatus
Product Description
With Energy Regulator Control – Oil Test Jet
Optional Accessories
Abel Oil Cup Thermometer (–35°C to 70°C × 0.5°C), IP 74C
Abel Water Bath Thermometer (–30°C to 80°C × 0.5°C), IP 75C
Polish wooden case for Model No. RAP-120
Spare cup for above apparatus
Spare top (cover assembly) with shutter mechanism
Spare nichrome heating element
Electronic Digital Temperature Indicator and Regulator, Oil Test Jet.
Electronic Digital Temperature Indicator and Regulator with Geared FHP Electrically Driven Stirrer (120 R.P.M.)
Abel Flash Point Apparatus, Temperature Range –18°C to +70°C with Refrigeration System as per IP-170, with Oil Test Jet System, Digital Temperature Indicator, and FHP Motor Stirrer
Note: All above models can be supplied with “Gas Test Jet” with reducing socket in place of Oil Jet System at extra cost Rs. 800/- each.
Abels Flash Point Apparatus
COMPLIANCE :IP170, IP33, IP113, BS2000 P-170, P-33, P113, ISO 1523,13736;
Description :Abel Flash Point Apparatus is suitable for determining the close cup flash point of Petroleum and mixtures according to IP 33 & IP 170 and also IS 1448 (Part I) 1985 (P:20). It is suitable for oils whose flashes below 70°C. It is supplied with oil cup, cover fitted with stirrer, thermometer socket S.S. Water Bath, Stand. An electric heater is fitted at bottom for operation on 220 Volts AC Circuits.
Models:
- Abels Flash Point Apparatus electrical heating with Energy Regulator Control – Oil Test Jet.
- Abels Flash Point Apparatus electrical heating with Energy Regulator Control & Concealed Hot Plate – Oil Test Jet

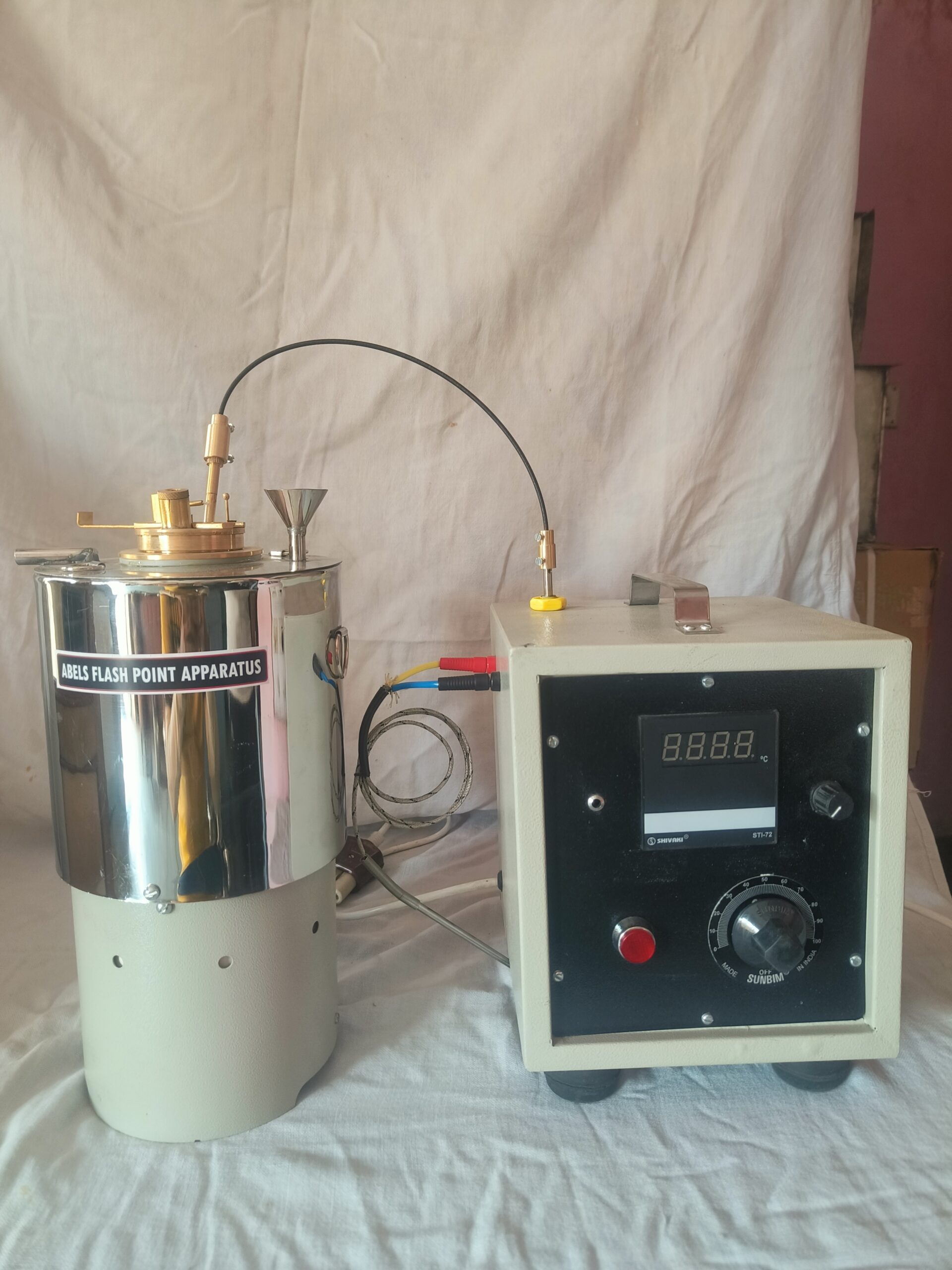

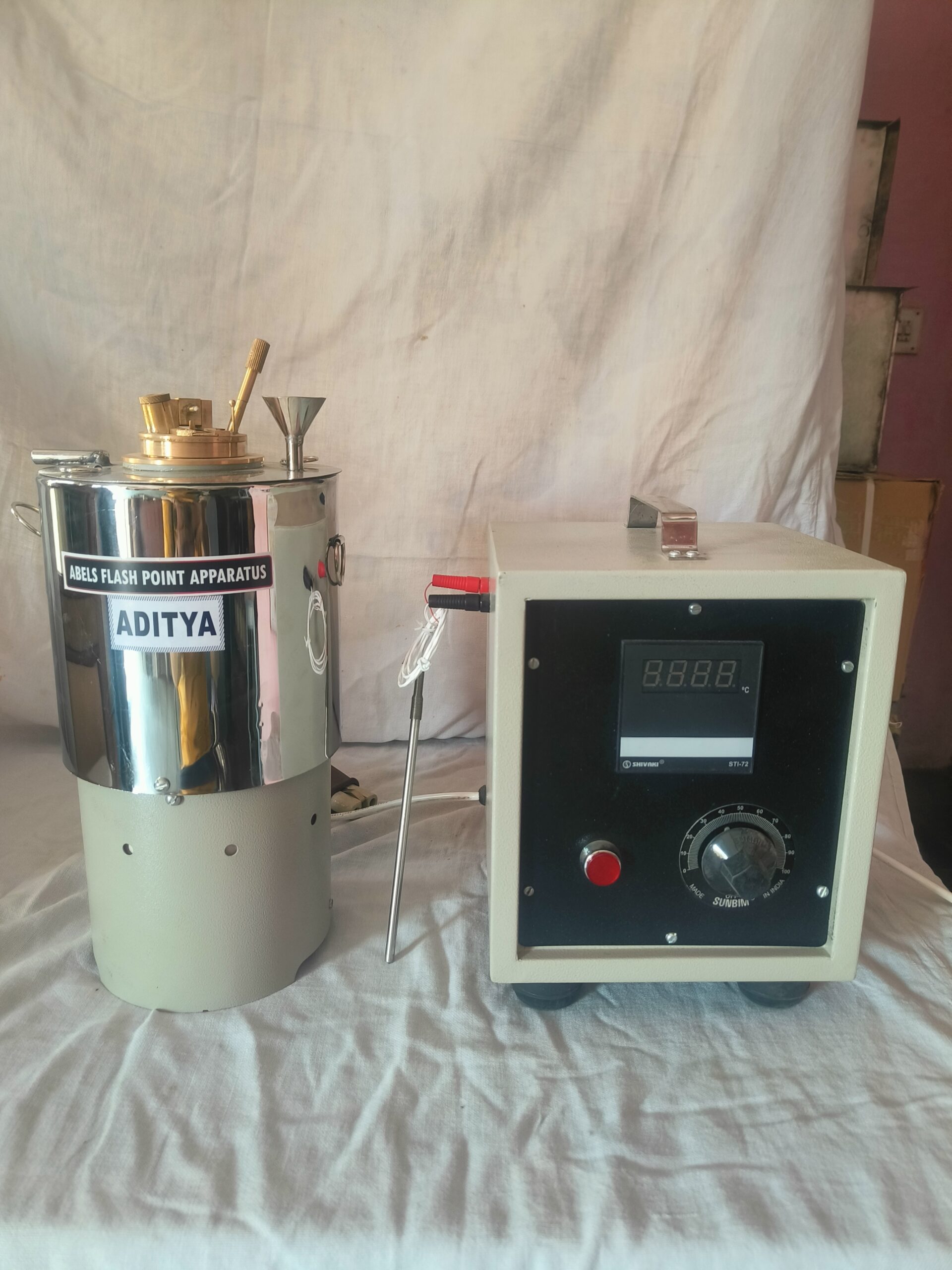

- Abel Flash Point Apparatus with Regulator DIGITAL TEMP. INDICATOR
- Abel Flash Point Apparatus with Regulator, DIGITAL TEMP. INDICATOR with geared FHP. Elect. Driven Stirrer (120 R.P.M)
- Abel Flash Point Apparatus Temp. Range -18°C to +70°C with REFRIGERATION SYSTEM as per IP-70 with Oil Test Jet system. With digital temperature. Indicator and FHP motor stirrer.
FAQs
1. What is an Abel flash point apparatus used for in petroleum testing?
The Abel flash point apparatus is used to determine the closed cup flash point of petroleum products and mixtures, helping identify safe storage and handling limits for volatile oils.
2. What is the flash point range supported by this apparatus?
This apparatus is suitable for testing oils and petroleum products that flash below 70°C, using the closed cup method for accurate and reliable results.
3. Which international standards (IP/ASTM) does it comply with?
The apparatus fully complies with IP 33, IP 170, and IS 1448 (Part I) 1985 (P:20), ensuring reliable and standards-compliant petroleum testing results.
4. Is this equipment suitable for volatile petroleum products?
Yes, the Abel flash point apparatus is specifically designed for testing volatile petroleum products and mixtures whose flash points fall below 70°C using the closed cup method.
5. What are the technical specifications of your Abel flash point equipment?
The apparatus operates on 220 Volts AC and is supplied with an oil cup, cover fitted with a stirrer, thermometer socket, stainless steel water bath, and stand with an electric heater fitted at the bottom.
