Penetrometer Apparatus
Product Description
(As per IP 49, 50 & 167 specifications and also as per IS 1448 (P:90) & (P:93))
This apparatus is used for penetration test on a wide variety of materials. It consists of a head support mounted on a vertical rod, adjustable for height. A rack and pinion with pointer assembly provides fine adjustment of needle tip to sample and incorporates a slipping clutch mechanism, which makes reading of penetration and subsequent resetting simple and accurate. The dial is graduated from 0–400 in one-tenth millimeter subdivisions. The instrument is supplied with two sample containers and two weights (50 gm / 100 gm).
Penetrometer with containers and weights having penetration needle (Bitumen)
Optional Accessories
Spare penetration needle (pack of two)
Spare penetration solid cone
Spare penetration brass hollow cone
Grease worker hand operated
Grease worker hand operated big handle (lever type)
Grease cutter as per IP 50
Transfer dish
Spare sample container (set of 2)
Spare brass weights 50 gm & 100 gm (set of 2)

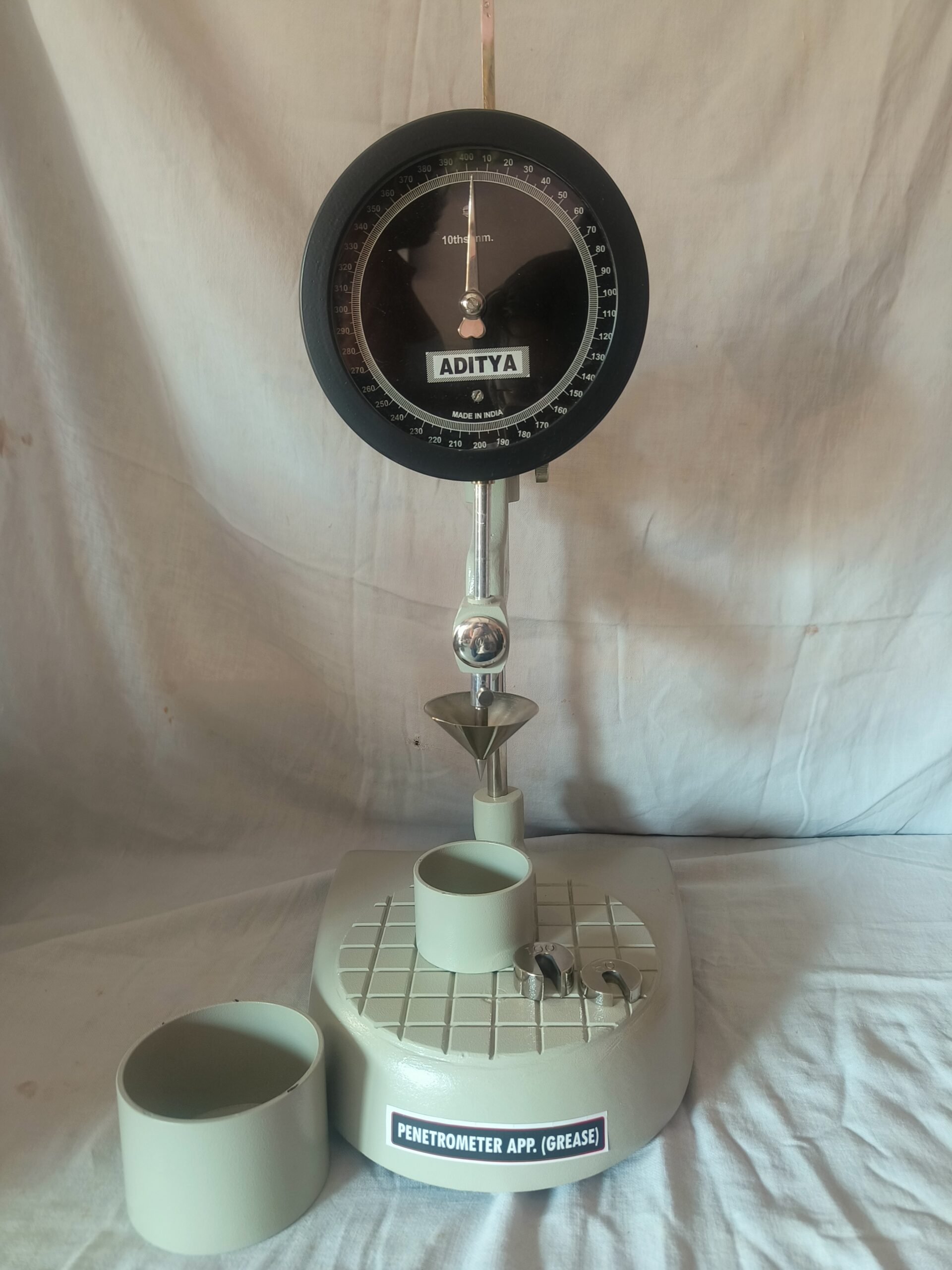

Penetrometer Apparatus with containers and weights having peneteration CONE HOLLOW type(Grease)
Pentrometer App. with Geared arrangement for moving the arm with geared unit for Precision Setting

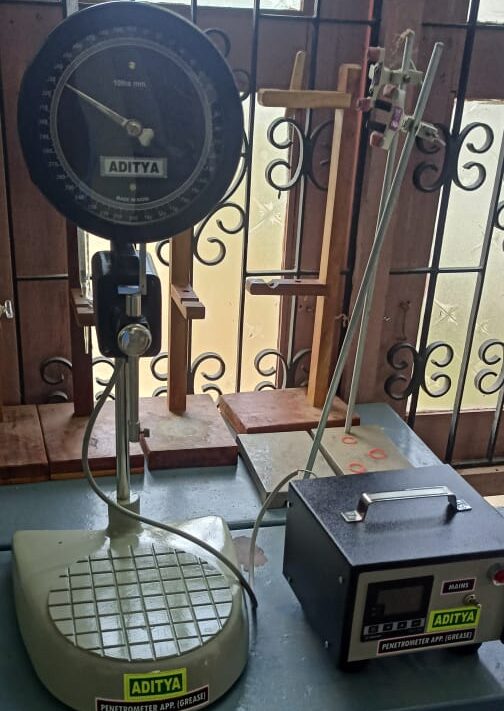

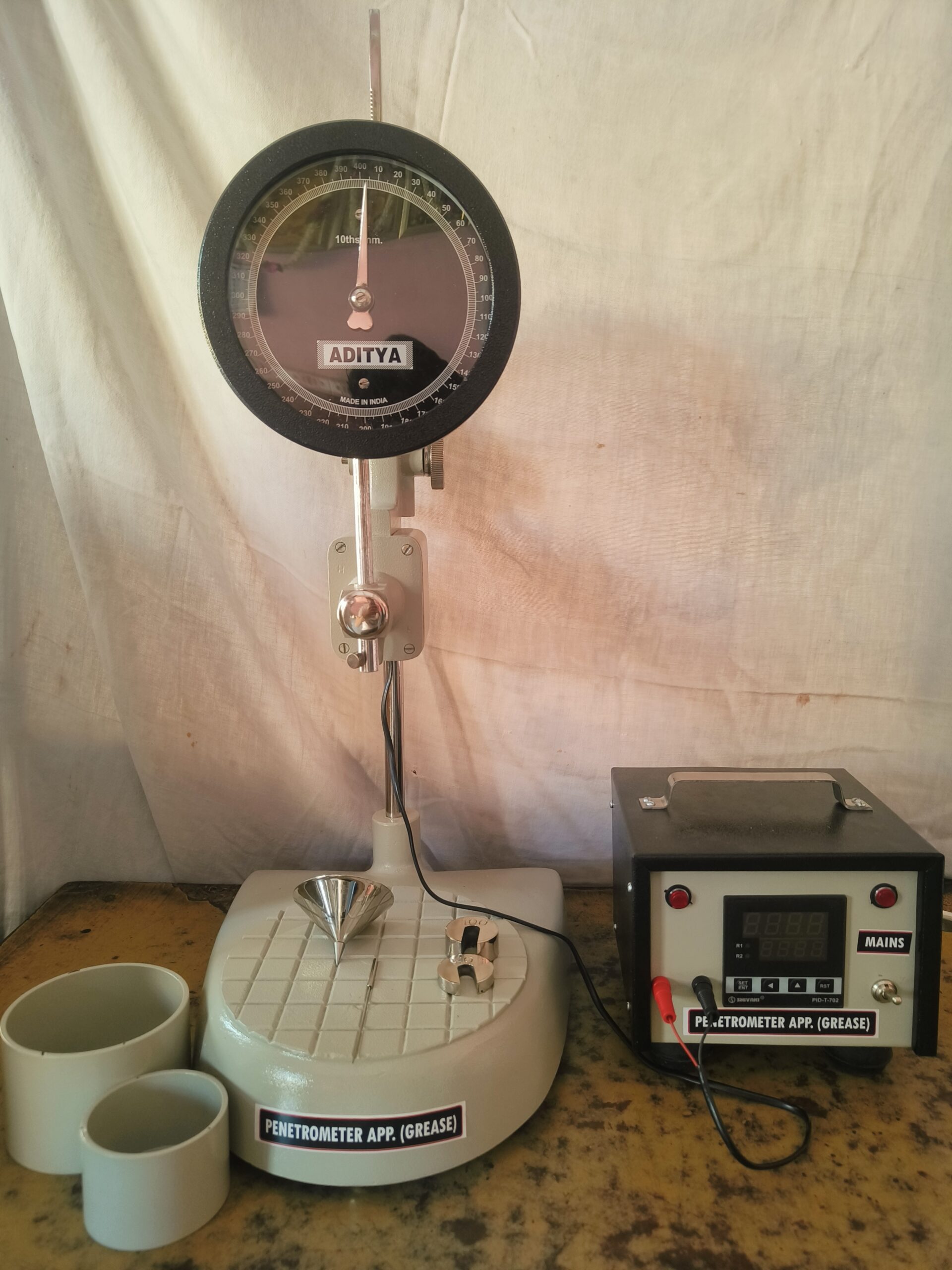

Penetrometer with brass cone & needle with digital timer device (adjustable)
—Same as above—but with geared arrangement for moving the arm with geared unit
FAQs
1. What is an automatic digital penetrometer used for in material testing?
It is used for penetration testing on a wide variety of materials including bitumen and grease, measuring the depth of penetration with a dial graduated from 0–400 in one-tenth millimetre subdivisions.
2. Is this equipment suitable for bitumen penetration testing?
Yes, the apparatus comes with a bitumen penetration needle and optional accessories including solid and hollow cones, making it fully suitable for bitumen and grease penetration testing.
3. What load and penetration range does the device support?
The apparatus supports penetration measurement from 0–400 units in one-tenth millimetre subdivisions and is supplied with 50 gm and 100 gm weights for load application.
4. Does it comply with ASTM and IS penetration test standards?
Yes, the apparatus complies with IP 49, IP 50, IP 167, IS 1448 (P:90), and IS 1448 (P:93) specifications. ASTM compliance details are not mentioned on the page.
5. What industries commonly use penetration testing equipment?
Penetration testing equipment is widely used in petroleum, bitumen, road construction, lubricant, grease manufacturing, and material testing industries for assessing consistency and hardness of various materials.
