AUTOMATIC PENSKY MARTENS FLASH POINT APPARATUS
Semi Automatic Pensky Martens Flash Point Apparatus: :model Flash -93 h
- Methods:ASTM D93 A+B+C , ISO 2719, IP 34, IS 1448 (P-21 Application: Petroleum Products in the temperature range 40 – 410 deg.C, Diesel, Biodiesel, Lubricating Oils, Food Oil, Flavors & Fragrances having range 35-410 deg.C.
- User Interface: User Friendly S/W with Methods & Result Storing; Standalone with HMI (7″ Touch Screen Display) RS232, Ethernet and USB Port Error : Flash at First dip/Flash Out of Range/Stirrer Fault/Igniter Fault/High Temperature
- SYSTEM Initialization : Stirrer, Igniter & Igniter mechanism checked during Initialization
- Cooling / Heating: Centrifugal Blower@ 35 Watts / Band Heater @ 450 watts
- Heat rate: Automatic Heat rate control from 0.5 to 14 Deg C
- Stirring: Speed Control by precise Potentiometer from 0 to 300 rpm
- Ignition: Electric / Gas Igniter interchangeable ;Electric Igniter – 4 step brightness Gas Igniter – Precise control for pilot flame & gas igniter

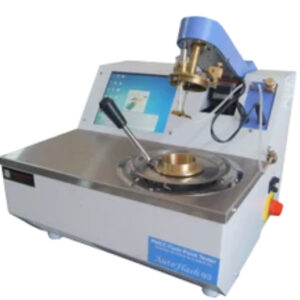

Fully Automatic Pensky martens flash point Apparatus
AutoFlash-93(V2.0) is programmable fully automated micro controller based standalone Pensky Martens Flash Point Analyzer conforming to standard ASTM D93A, B & C. Procedure A applicable to distillate fuels (diesel, kerosene, heating oils, turbine fuels), new lubricating oils and homogeneous petroleum liquids not included in the scope of procedure B. Procedure B is applicable to residual fuel oils, cutback residual, used lubricating oils, mixture of petroleum liquids with solids, petroleum liquid that tend to form surface film under test conditions, or are petroleum liquids of such kinematic viscosity that they are not uniformly heated under the stirring and heating conditions of procedure A. Procedure C is applicable to bio diesel for the determination of the flash point.
