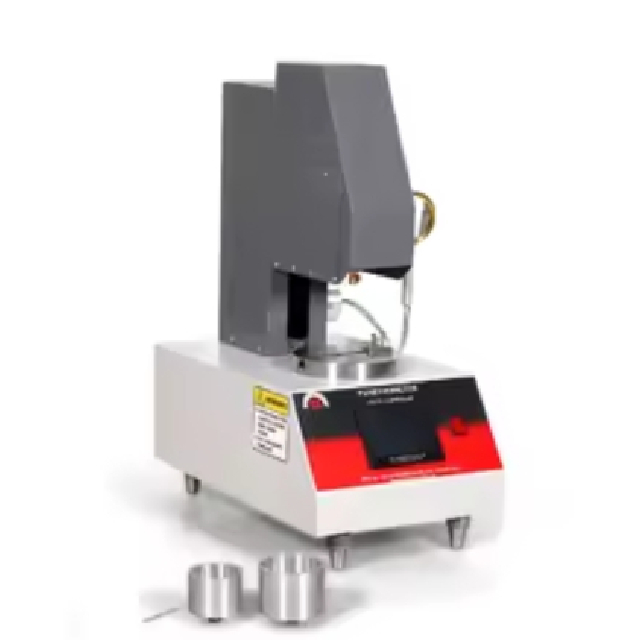

Product Description

Complies to following International Standard:

ASTM D5, ASTM D217, ASTM D937, ASTM D1321

Salient Features:

1. Fully Automatic operational Design
2. Compact design and rugged construction ensures long service life and facilitates easy transport for field applications.
3. Graphical display
4. Opto-electronically depth detection & measurement through imported Opto-electronic sensor
5. Automatically timed programmable penetration measurements ‑ Preset penetration time at factory (Operator can also enter the user defined penetration interval through touch screen)In‑built Facility to tare and reset the measurement results
6. Display resolution of penetration depth in tenths of units (0.1mm)
7. Magnifying lens for adjusting needle tip/cone tip exactly on the sample surface
8. Low voltage Illuminator mounted on flexible arms to assist an operator during testing
9. Built‑in spirit level and leveling screws to ensure proper alignment
10. Micrometer differential gearing mechanism for fine movement of head
11. Weight of the Needle/Cone and plunger match the criteria of ASTM and IP requirements.
12. The penetration time is controlled and indicated on Digital LCD display with least count of 0.1 second.
13. The Opto-electronic sensor installed within the instrument detects the penetration depth in 10th of millimeter (0.1mm)
14. The penetration value is measured and indicated on digital LCD display
15. Saves last 10 average readings
16. Supplied complete with Needle/cone, container and applicable weight
